Dongguan Shinestar Storage Equipment Co., Ltd. provides customized Cantilever Racks for long, bulky and irregular materials. This storage rack solution is ideal for pipes, timber, steel bars, aluminum profiles, boards, furniture components and other materials that need open-front access and flexible loading.
Dongguan Shinestar Storage Equipment Co., Ltd. provides professional storage solutions and manufactures various types of racks and shelves applied to different industry fields.
Our professional service and high quality products help customers improve storage capacity, warehouse organization and daily operation efficiency.
Cantilever Racks are designed for storing long, heavy and irregular goods that are difficult to place on standard pallet racks. Column height, arm length, arm capacity, base size and single-sided or double-sided structure can be customized for each warehouse project.

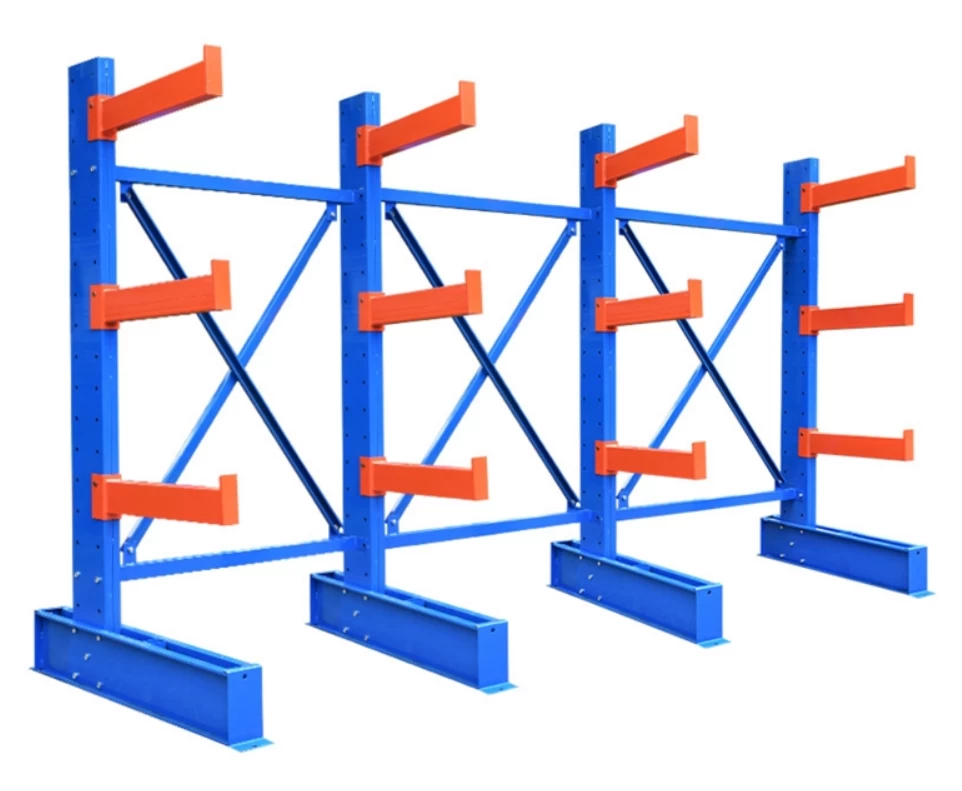

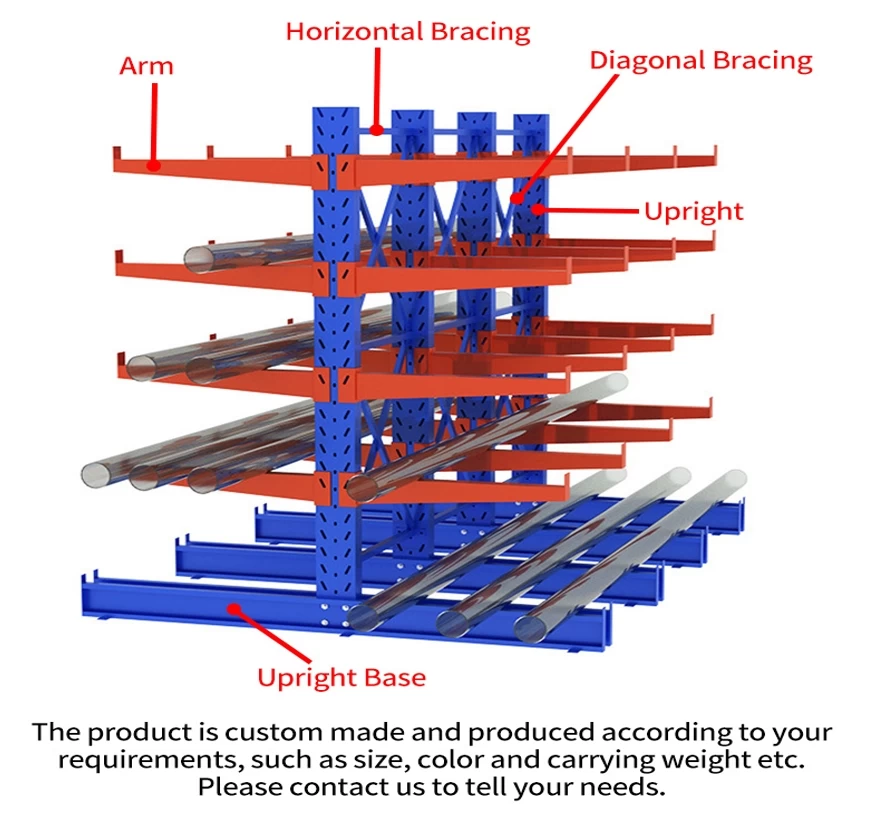

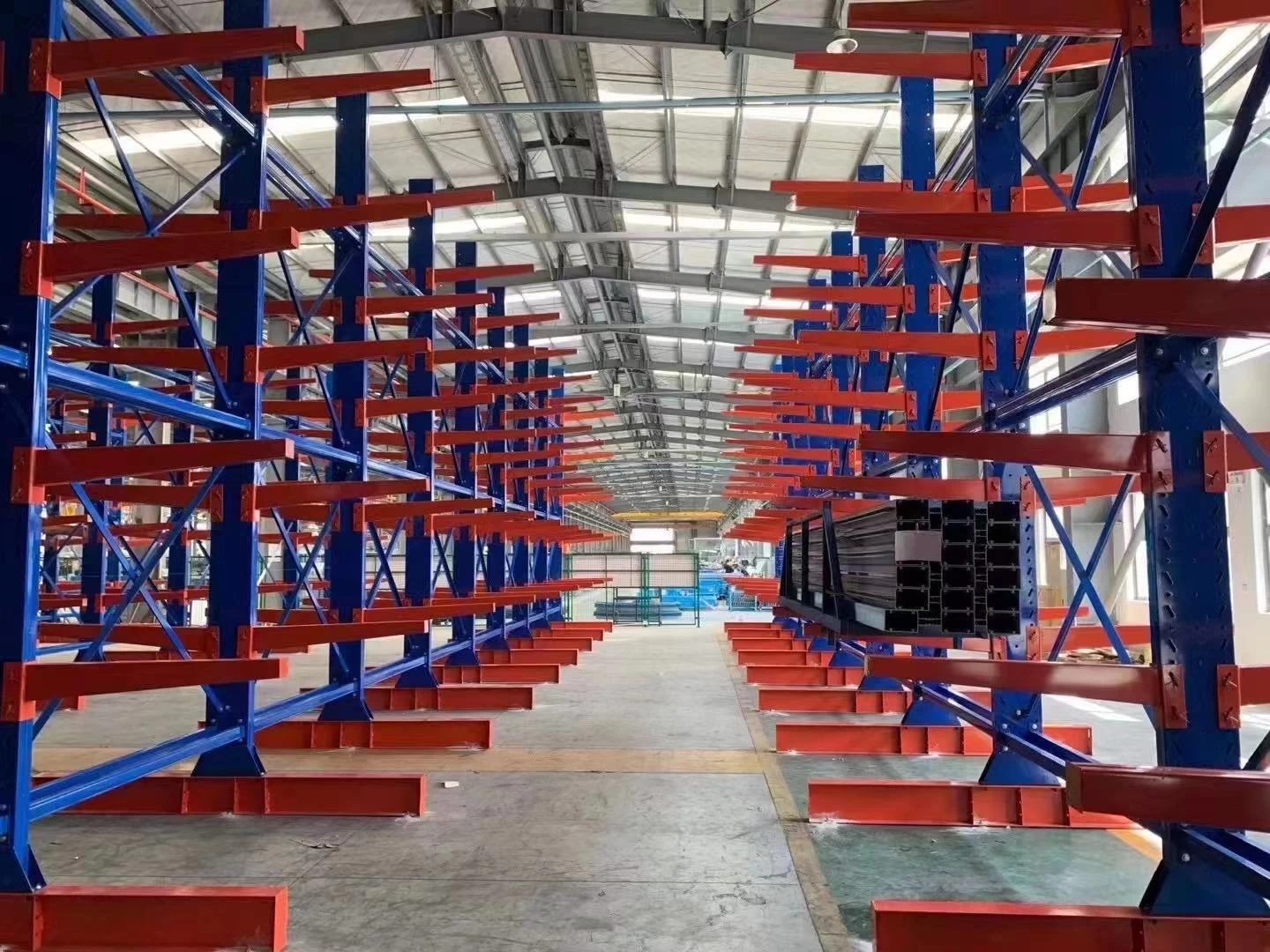

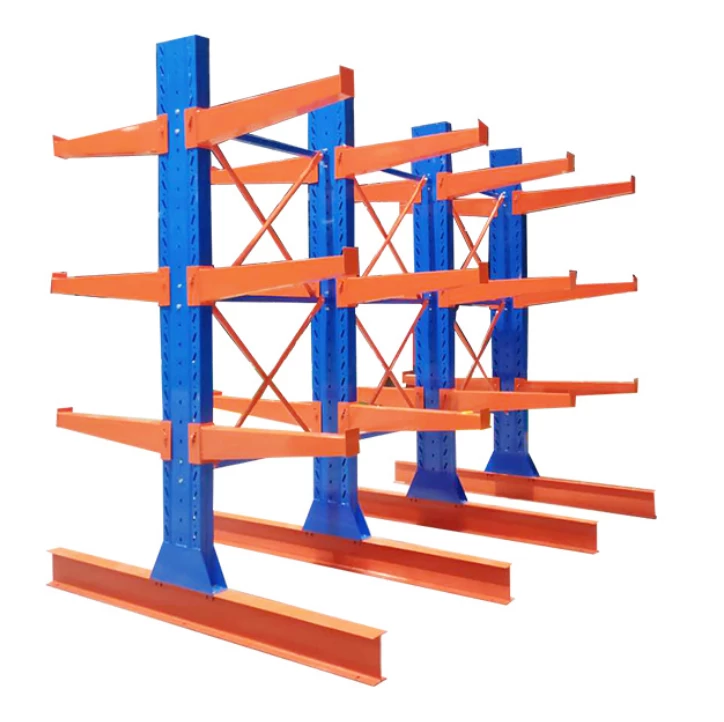

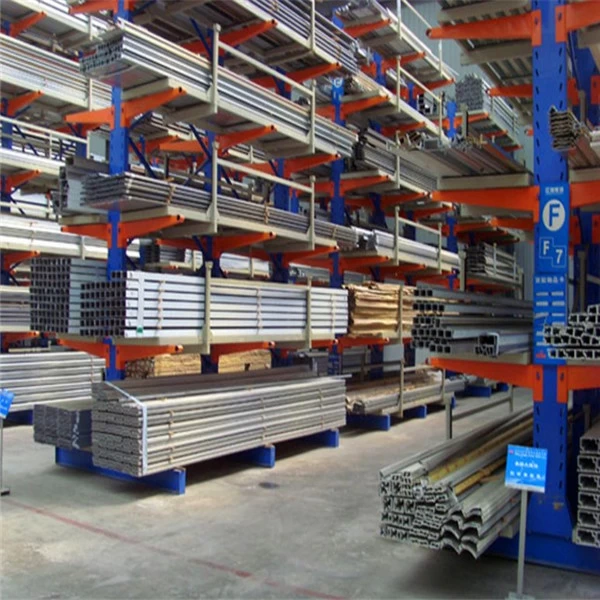

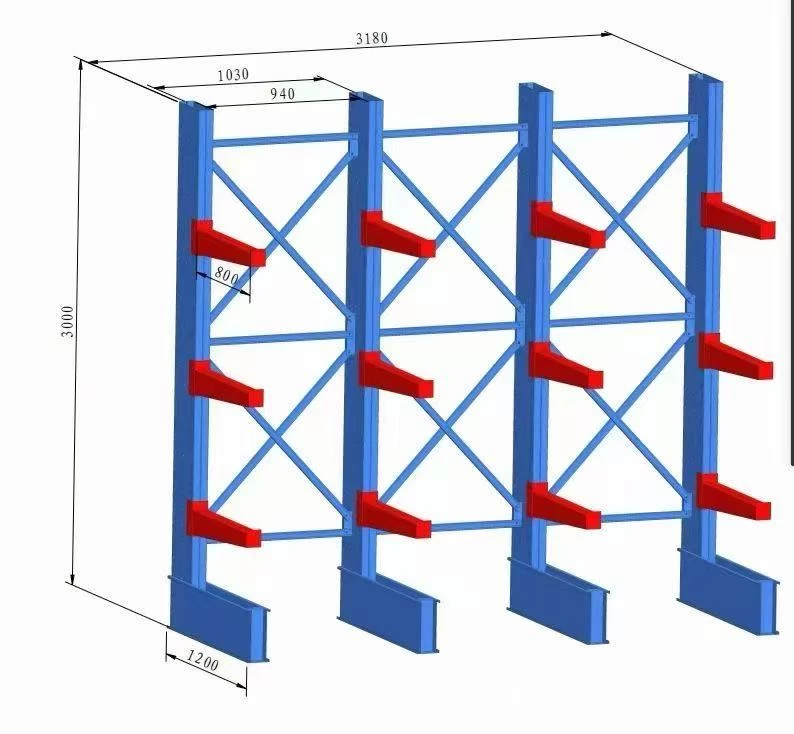

Cantilever Racks use upright columns, cantilever arms, bases and bracing to create an open storage system for long materials. The structure allows easy forklift loading from the front without obstruction, making it suitable for steel pipes, lumber, profiles, panels, furniture boards and heavy industrial materials.

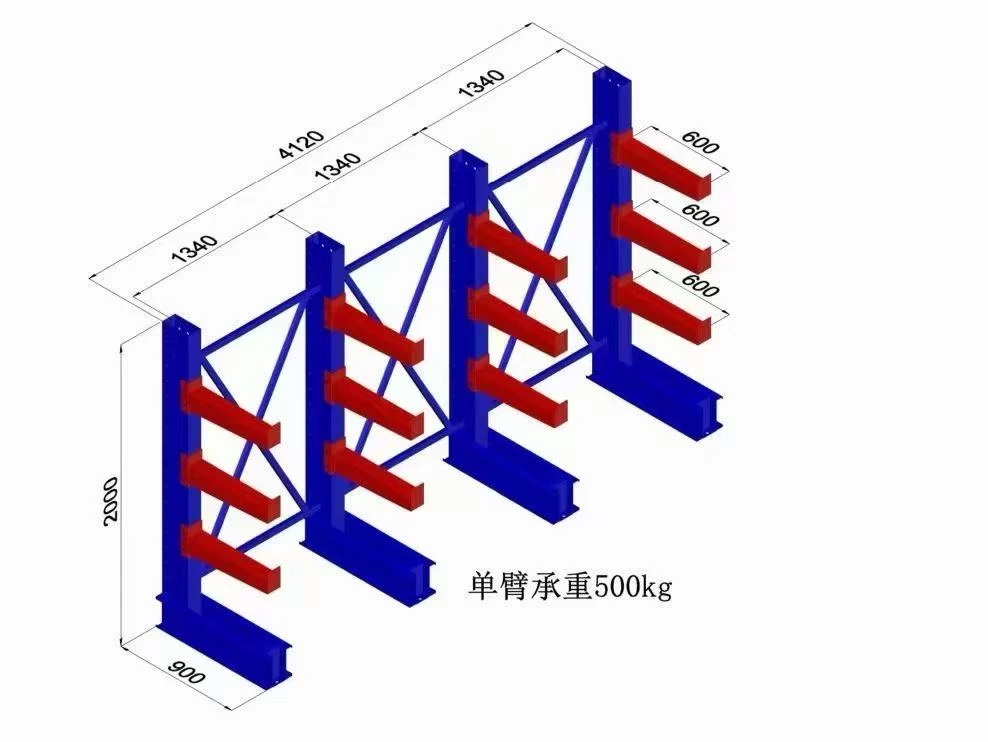

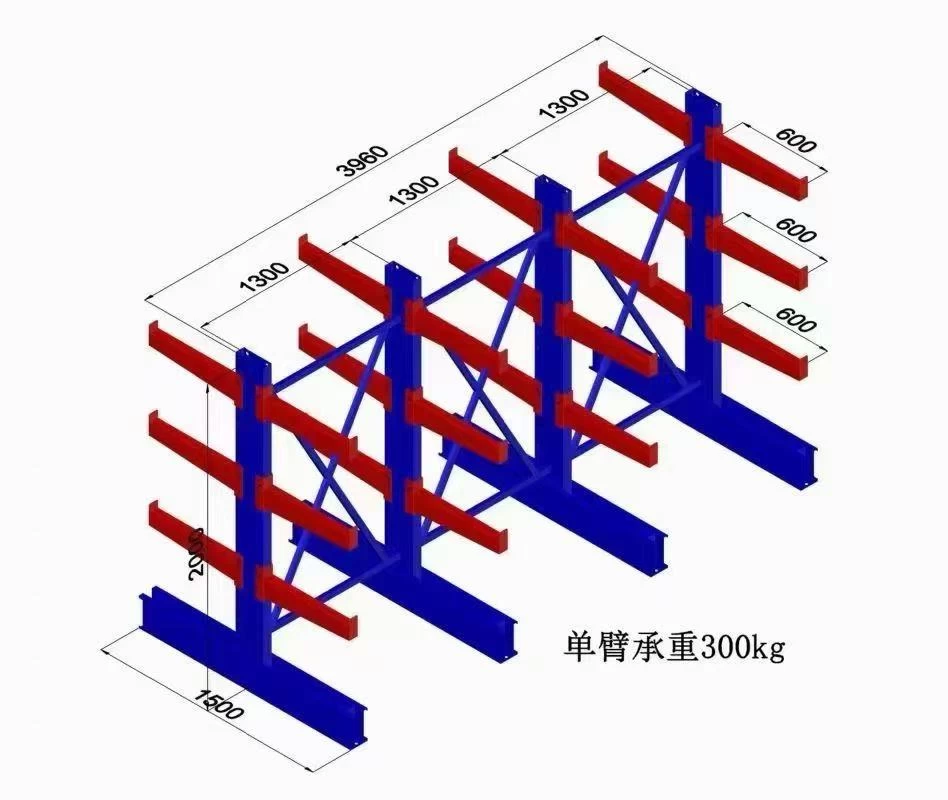

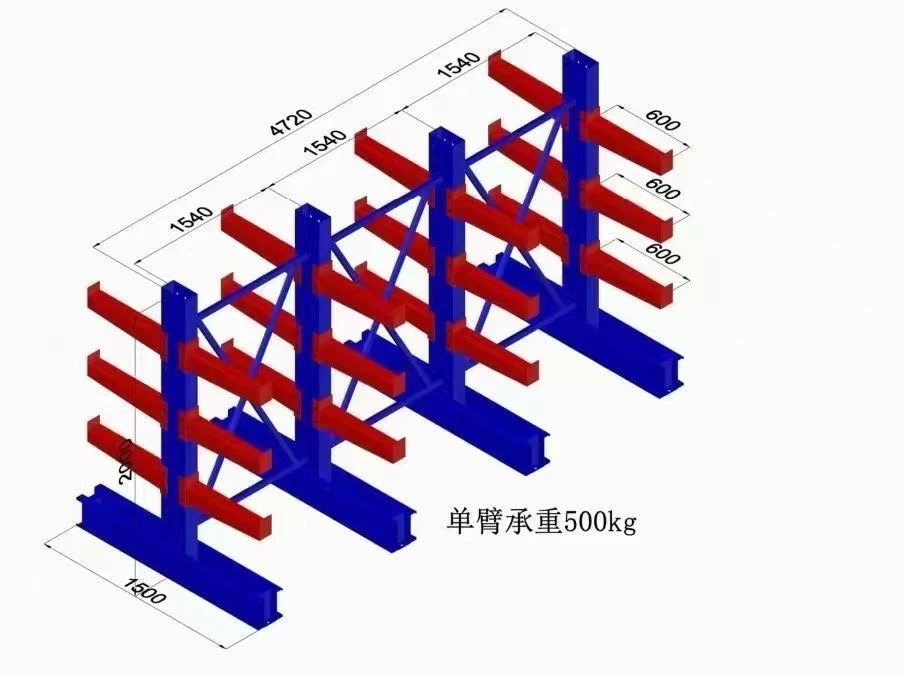

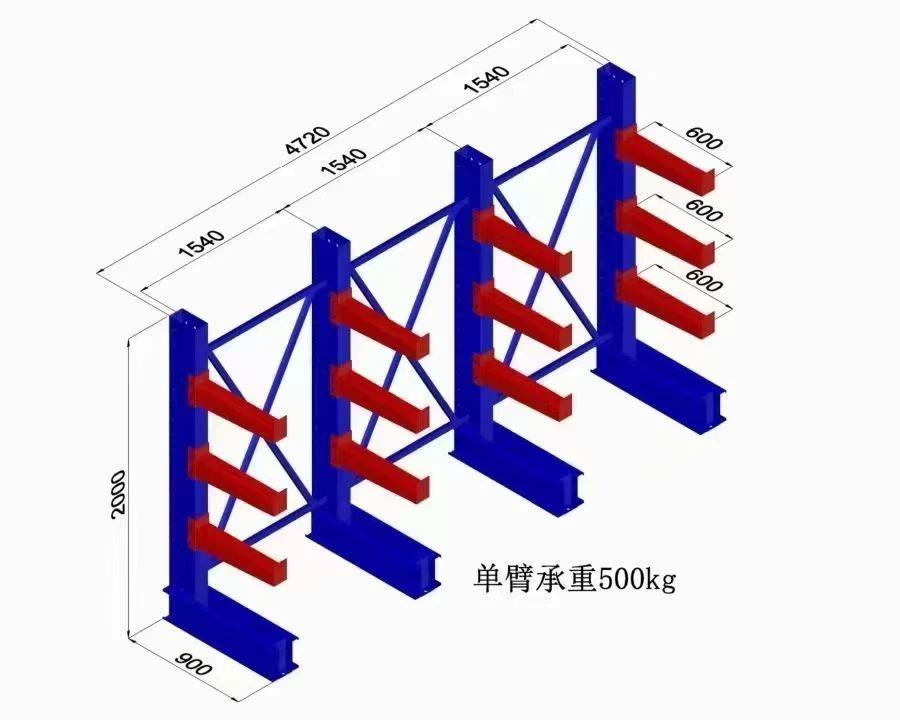

The parameters below are taken from the provided Cantilever Racks document. Each arm layer can be vertically adjusted by 140mm, with single-sided or double-sided structures available.
| Product Type | Load Capacity Per Arm | Height (mm) | Arm Length (mm) |
|---|---|---|---|
| Cantilever Racks | 200kg per arm | 3000mm | 1800mm |
| Cantilever Racks | 300kg per arm | 4500mm | 1500mm |
| Cantilever Racks | 500kg per arm | 5000mm | 1200mm |
| Cantilever Racks | 700kgs per arm | 9000mm | 1000mm |
Cantilever arms provide unobstructed front access, making it easier to store and pick long or irregular materials.
Arm length, arm spacing and load capacity can be adjusted according to different material lengths, weights and storage layers.
Heavy steel columns, stable bases and bracing systems provide reliable support for long material storage and forklift operation.
Confirm warehouse size, material length, material weight, bundle size, loading method, forklift type and storage direction.

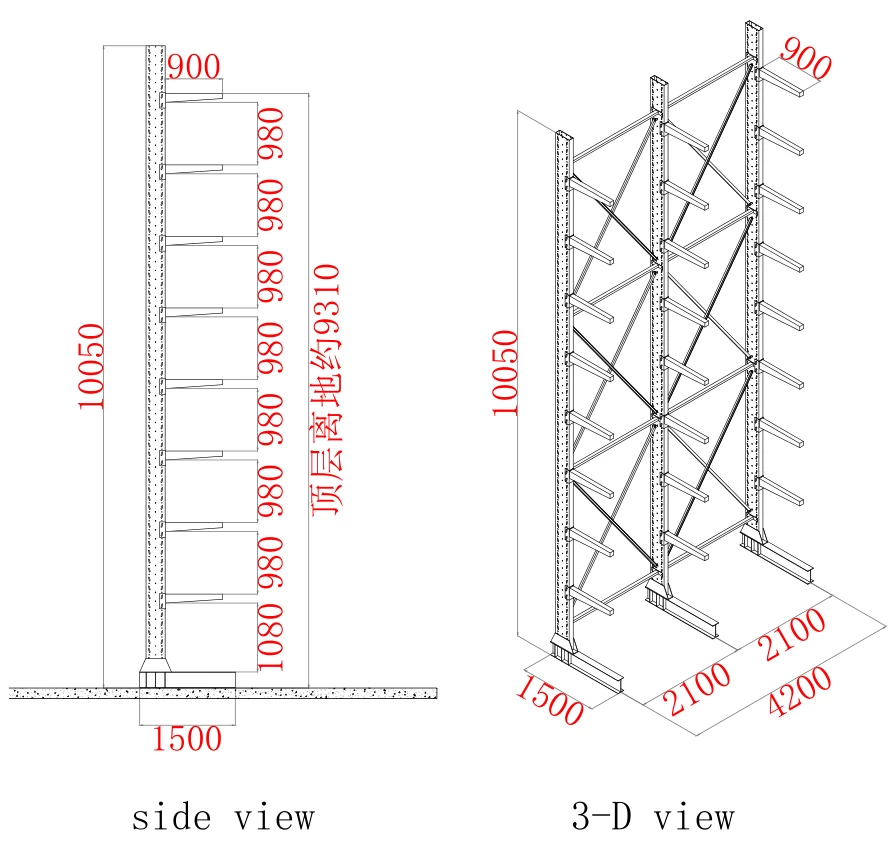

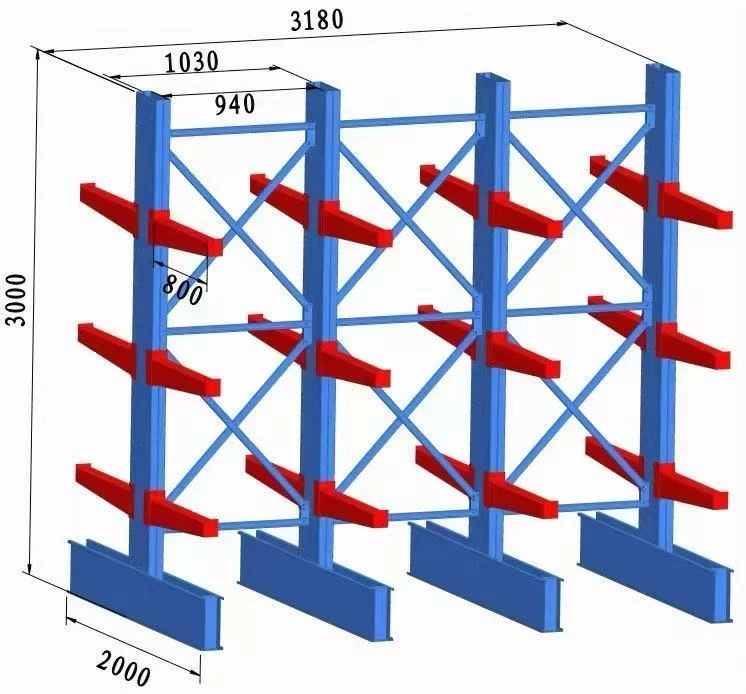

Design column height, arm length, arm spacing, arm capacity, base size, single-sided or double-sided layout and forklift aisle.
Produce columns, arms, bases, bracing, stoppers, protectors and other cantilever rack components with required surface treatment.

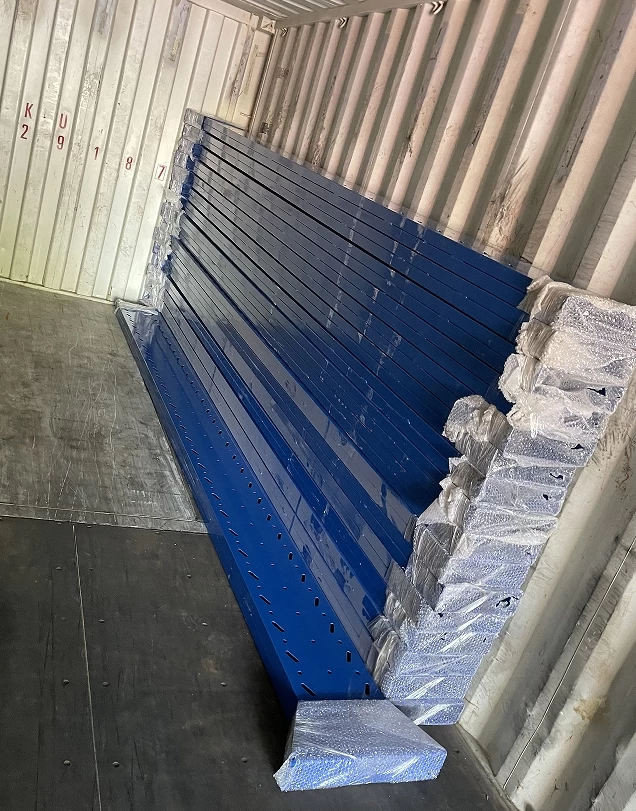

Pack and ship according to rack layout, component list, installation sequence and customer schedule.
Provide installation guidance, loading suggestions and after-sales response for long-term cantilever rack use.
Do not overload. Each arm level must stay within the designed arm load capacity and approved material size.

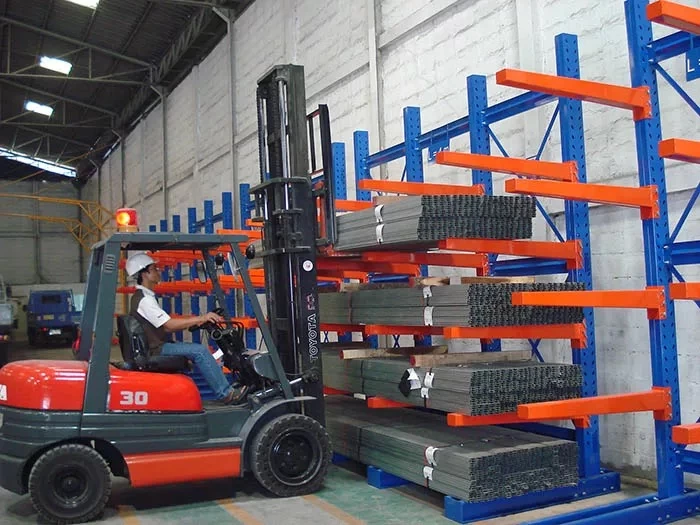

Forklift drivers should load materials slowly and keep long goods evenly placed on the arms to avoid eccentric loading.
Use arm stoppers, base guards and column protectors in high-traffic areas to reduce impact and slipping risks.
Regularly check columns, arms, bases, bracing, anchors, bolts and safety accessories for stable operation.
Reliable service commitment for long-term warehouse operation.
Send us your warehouse size, material length, material weight, storage quantity, forklift information, preferred rack type and project drawing. We will provide a professional Cantilever Rack design and quotation.
